| Place of Origin: | China |
| Brand Name: | JIDE |
| Model Number: | JECA-EC |
| Certification: | CE, RoHS |

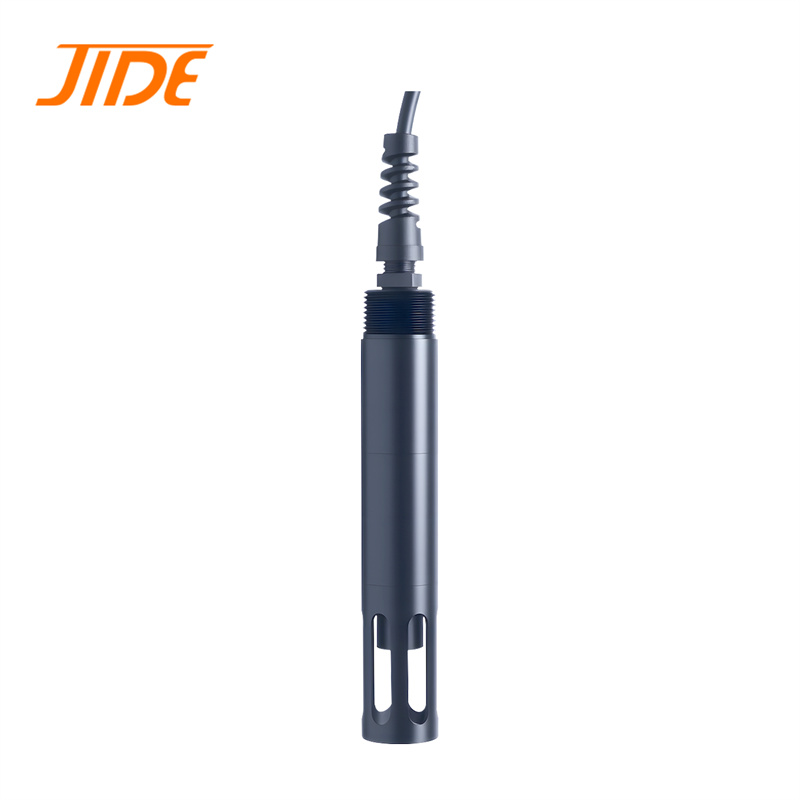

JECA-EC online conductivity/salinity/TDS analyzer is an integrated design, using industrial online electrodes, digital and intelligent sensor design concepts. The special circuit design amplifies the conductivity signal strength, making the product's measurement accuracy and stability in low-range conductivity very excellent. The lowest range can test 0-5uS/cm and maintain an accuracy of less than 1%.
◆ Four-wire graphite electrode, wide range switchable
◆ The front glass consumables can be removed and replaced, with low maintenance cost
◆ The aviation plug automatically matches the controller after being connected, which is convenient for on-site operation and maintenance
| Model | JECA-EC |
| Measurement parameters | Conductivity, temperature |
| Measurement method | Four-wire graphite electrode method |
| Range | Conductivity: (0~200mS/cm)Salinity: (0-100) ppt |
| Accuracy | ≤±1% |
| Repeatability | ≤1% |
| Resolution | Conductivity: 0.01µS/cmSalinity: 0.01 ppt |
| Response time | ≤20s |
| Drift | ≤±1%F.S. |
| Temp compensation accuracy | ≤±1%F.S. |
| Temperature range | (0~60)℃ |
| Protection level | IP68 |
| Communication | RS485 (ModbusRTU), maximum baud rate 115200bps |
| Power supply/Consumption | (12~24)VDC/<0.3W |
| Material | Titanium alloy, stainless steel, POM |
| Size | 162mm*φ28mm |
