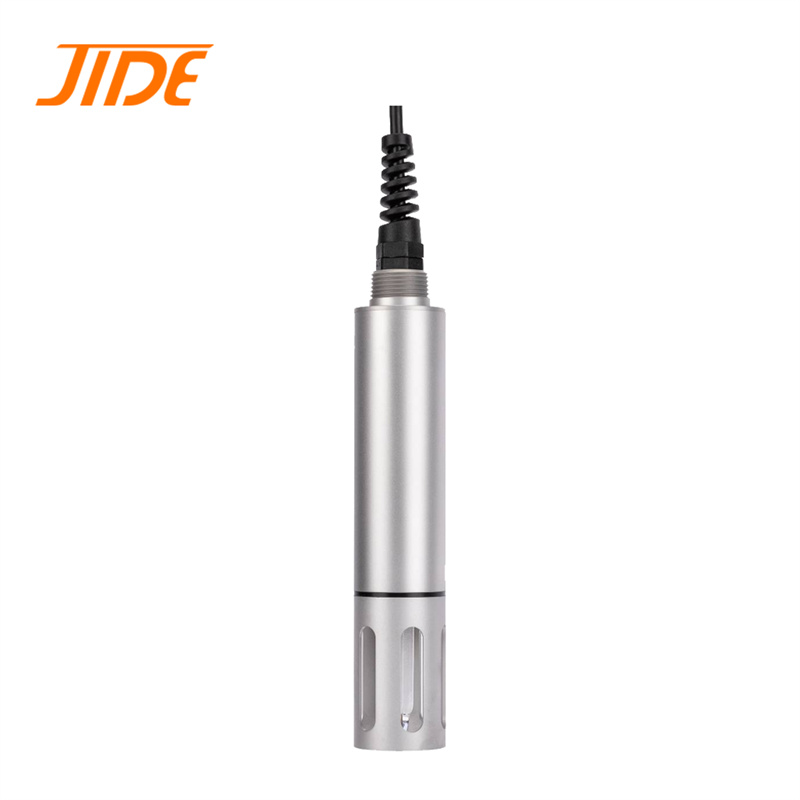

Digital ORP Sensor JESA-ORP

Digital ORP Sensor JESA-ORP

Download:
Get a Quote
Place of Origin: China
Brand Name: JIDE
Model Number: JESA-ORP
Certification: CE, RoHS

Description

JECA-ORP online ORP analyzer is an integrated design, using industrial online electrodes, digital and intelligent sensor design concepts. The instrument implements electrode signal detection, temperature detection and automatic compensation, digital signal conversion and other functions. RS485 signal output, convenient for networking and system integration.

Advantages

◆ Integrated design, anti-electromagnetic interference

◆ Industrial online composite electrode, can work stably for a long time

◆ Built-in temperature sensor, real-time temperature compensation

◆ IP68 waterproof rating, suitable for various working conditions

Specifications

Model JESA-ORP
Measurement parameters ORP, Temperature
Measurement method ORP:(-2000～+2000)mV;Temperature:(0～60)℃
Range ≤±20mV
Accuracy ≤±1mV
Repeatability 0.1mV
Resolution ≤±1mV
Response time ≤±1mV
Drift Glass electrode method
Temp compensation accuracy ≤10s
Calibration cycle 6 months
Temperature range (0～60)℃
Protection level IP68
Communication RS485 (ModbusRTU), maximum baud rate 115200bps
Power supply/Consumption (12～24)VDC/＜0.3W
Material Titanium alloy, stainless steel, POM
Size 205mm×φ40mm
