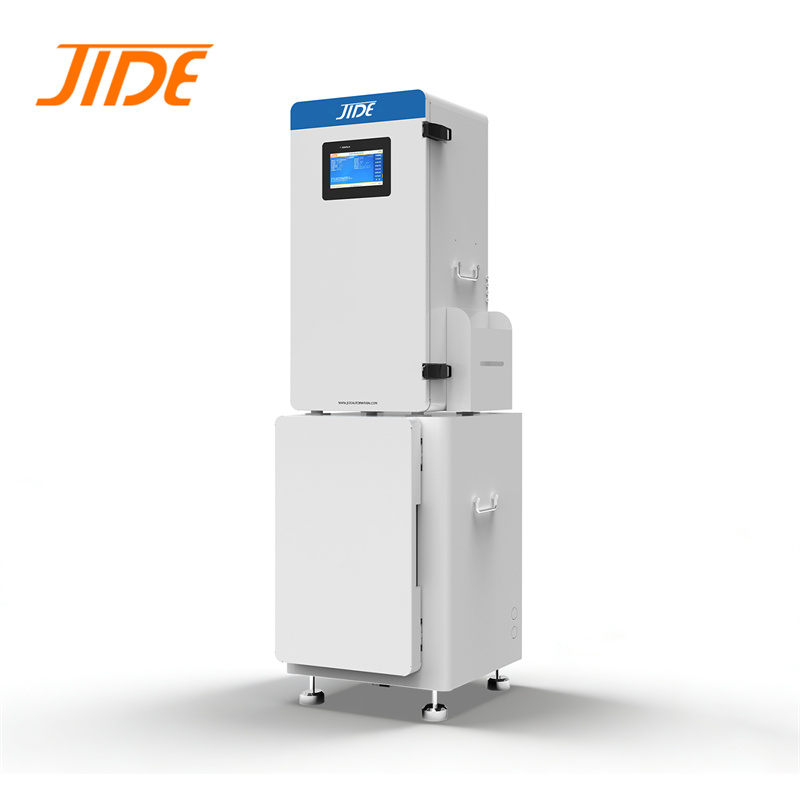

Hexavalent Chromium Water Quality Online Analyzer

Place of Origin: CHINA
Brand Name: JIDE
Model Number: JD1000-Cr6
Certification: CE, LVD, EMC

Description

Principle of hexavalent chromium determination: Under acidic conditions, hexavalent chromium reacts with diphenylcarbazide to generate a purple-red compound. The absorbance is detected by the principle of photoelectric colorimetry to calculate the concentration of hexavalent chromium in the water sample.

Specifications

Digital Input 2 channel switch
Analog Output 1 channel 4~20mA
Digital Communications RS232/RS485
Operating temperature 5℃~40℃
power supply AC 100~240V;50/60Hz
power 80W
size 800mmx400mmx330mm
weight 25kg(without reagents)
Measurement method Diphenylcarbazide spectrophotometry
Measuring range 0-1/2/5mg/L;expandable
Measuring cycle Configurable
Lower limit of quantification ≤0.01mg/L
Indication error ±10%
Precision ≤5%
Zero drift ≤5%
Range drift ≤10%

Competitive Advantage

MAJOR FUNCTION

● 7 inch LCD touch screen

● Can store more than 100000 groups of data

● With calibration, status, alarm record function

● With self-diagnosis, lack of liquid alarm function

● With manual, interval, whole point and other measurement modes

● After power failure, the measurement function will be activated when the caller comes in.

● The number of ranges and the range can be set.

● Support multi-point calibration function

● Automatic calibration liquid verification, support the setting of automatic calibration liquid verification interval time

● Can be automatically calibrated, support for setting the calibration interval time

● Receive remote control commands from the management platform
