| Place of Origin: | China |
| Brand Name: | JIDE |
| Model Number: | JISA-BromineI |

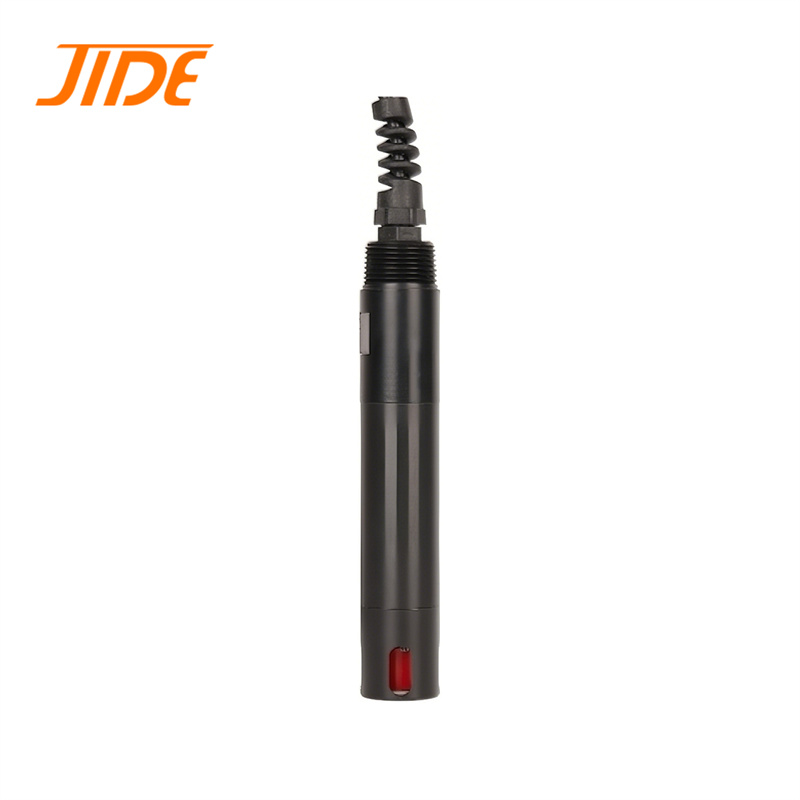

JISA is an online water quality analyzer developed based on a digital water quality analysis platform. It can accurately monitor most of the water quality ion parameters required by the market. It uses industrial online ion selective electrodes and digital and intelligent sensor design concepts. The instrument implements electrode signal detection, pH compensation, temperature detection and automatic compensation.
| Model | JISA-ChloriI |
| Measurement parameters | Bromide ions,, pH, Temp |
| Measurement method | Ion Selective Electrode Method |
| Range | Ion concentration: (0.1~1000) mg/L; pH: 0~14; Temperature: (0~60)℃ |
| Accuracy | ≤±3% |
| Repeatability | ≤2% |
| Resolution | Ion concentration: 0.01mg/L, pH: 0.01 |
| Detection limit | 0.1mg/L |
| Response time | ≤60s |
| Zero drift/quantity drift (24h) | ≤±3%F.S. |
| Calibration cycle | 3 months |
| Temperature range | (0~60)℃ |
| Protection level | IP68 |
| Communication | RS485 (ModbusRTU), maximum baud rate 115200bps |
| Power supply/Consumption | (12~24)VDC/<0.5W |
| Material | Stainless steel, POM |
| Weight/Size | 0.6kg / 205mm×φ45mm |
◆ Imported ion bulb sensitive membrane element, can work stably for a long time
◆ pH and temperature compensation are standard to meet high precision requirements and provide accurate readings
◆ Detachable design, consumables can be replaced independently, extending the service life of the whole machine and convenient
