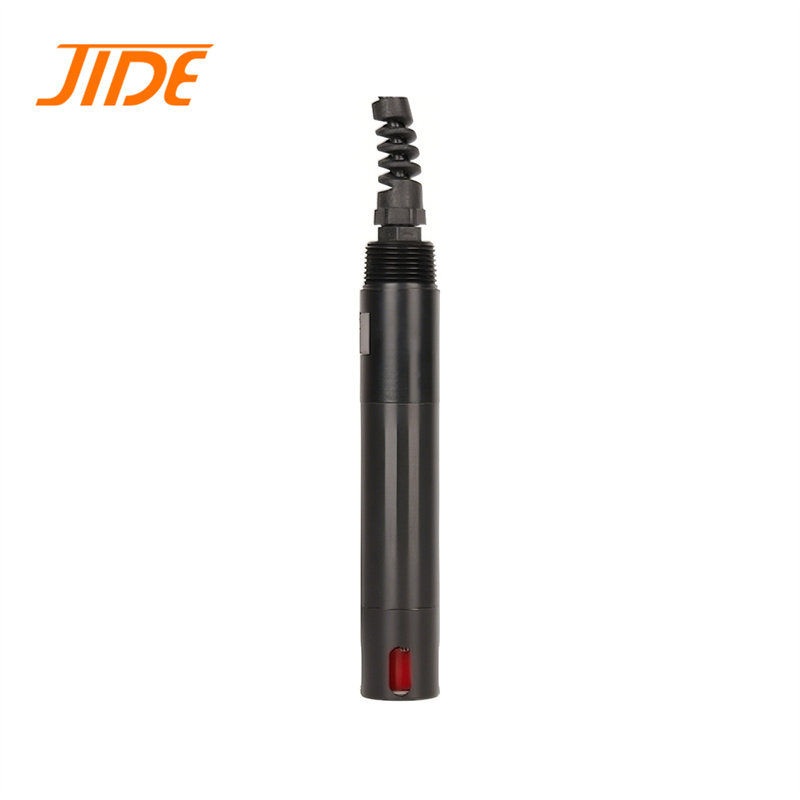

online nitrate nitrogen analyzer jisa nitra-0
Place of Origin: China
Brand Name: JIDE
Model Number: JISA-Nitra

Description

JISA-Nitra is an online water quality analyzer developed based on a digital water quality analysis platform. It has an integrated design, uses industrial online ion selective electrodes, and uses digital and intelligent sensor design concepts. The instrument implements functions such as electrode signal detection, pH compensation, temperature detection and automatic compensation, and digital signal conversion.

Specifications

Model JISA-Nitra
Measurement parameters Nitrate, temperature
Measurement method Ion Selective Electrode Method
Range Nitrate nitrogen: (0.1~1000) mg/L, Temperature: (0~60)℃
Accuracy ≤±3%
Repeatability ≤2%
Resolution Nitrate nitrogen: 0.01mg/L
Detection limit 0.1mg/L
Response time ≤60s
Zero drift/quantity drift (24h) ≤±3%F.S.
Calibration cycle 3 months
Temperature range (0~60)℃
Protection level IP68
Communication RS485 (ModbusRTU), maximum baud rate 115200bps
Power supply/Consumption (12~24)VDC/<0.5W
Material Stainless steel, POM
Weight/Size 0.6kg / 205mm×φ45mm

Competitive Advantage

◆ Imported online ion selective electrode, can work stably for a long time

◆ pH, temperature, potassium ion (K+) and other multi-parameter compensation algorithms to ensure measurement accuracy

◆ IP68 waterproof rating
