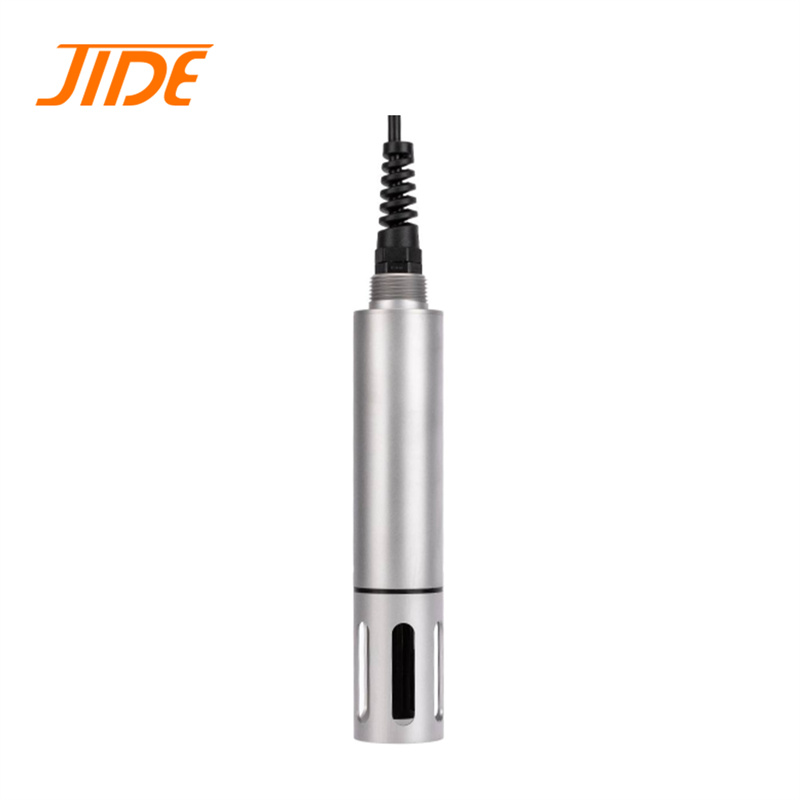

probe josa ec-0
Place of Origin: China
Brand Name: JIDE
Model Number: JOSA-EC
Certification: CE, RoHS

Description

JOSA-EC online conductivity/salinity/TDS analyzer is an integrated design, using industrial online electrodes, digital and intelligent sensor design concepts. The special circuit design amplifies the conductivity signal strength, making the product's measurement accuracy and stability in low-range conductivity very excellent. The lowest range can test 0-5uS/cm and maintain an accuracy of less than 1%.

Applications

◆ Four-wire graphite electrode, wide range switchable

◆ The front glass consumables can be removed and replaced, with low maintenance cost

◆ The aviation plug automatically matches the controller after being connected, which is convenient for on-site operation and maintenance

Specifications

Model JOSA-EC
Measurement parameters Conductivity, temperature
Measurement method Four-wire graphite electrode method
Range Conductivity: (0~500mS/cm)Salinity: (0-100) ppt
Accuracy ≤±1%
Repeatability ≤1%
Resolution Conductivity: 0.01µS/cmSalinity: 0.01 ppt
Response time ≤20s
Drift ≤±1%F.S.
Temp compensation accuracy ≤±1%F.S.
Temperature range (0~60)℃
Protection level IP68
Communication RS485 (ModbusRTU), maximum baud rate 115200bps
Power supply/Consumption (12~24)VDC/<0.3W
Material Titanium alloy, stainless steel, POM
Size 205mm×φ40mm
