| Place of Origin: | China |
| Brand Name: | JIDE |
| Model Number: | PSE-514 |
| Certification: | CE, RoHS |

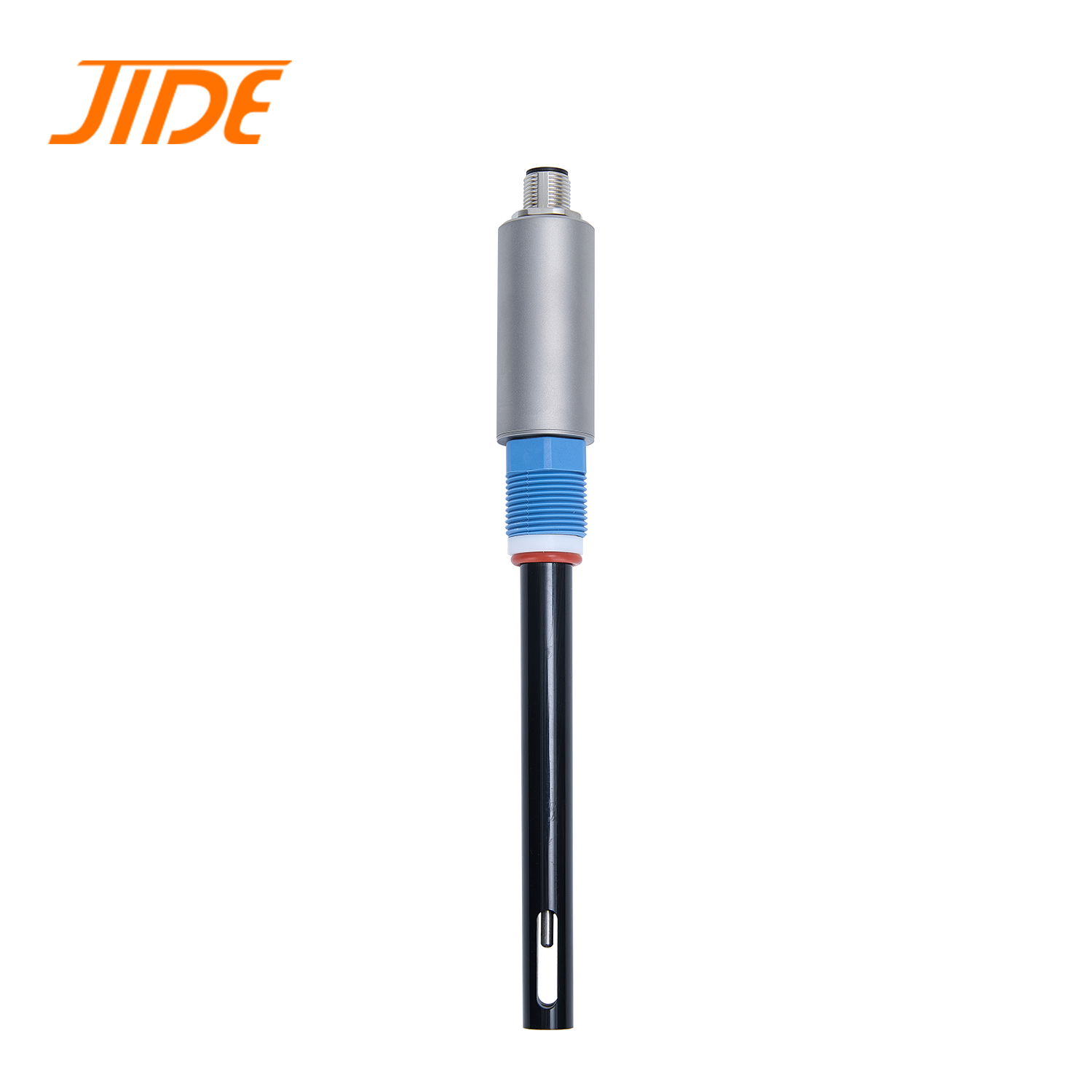

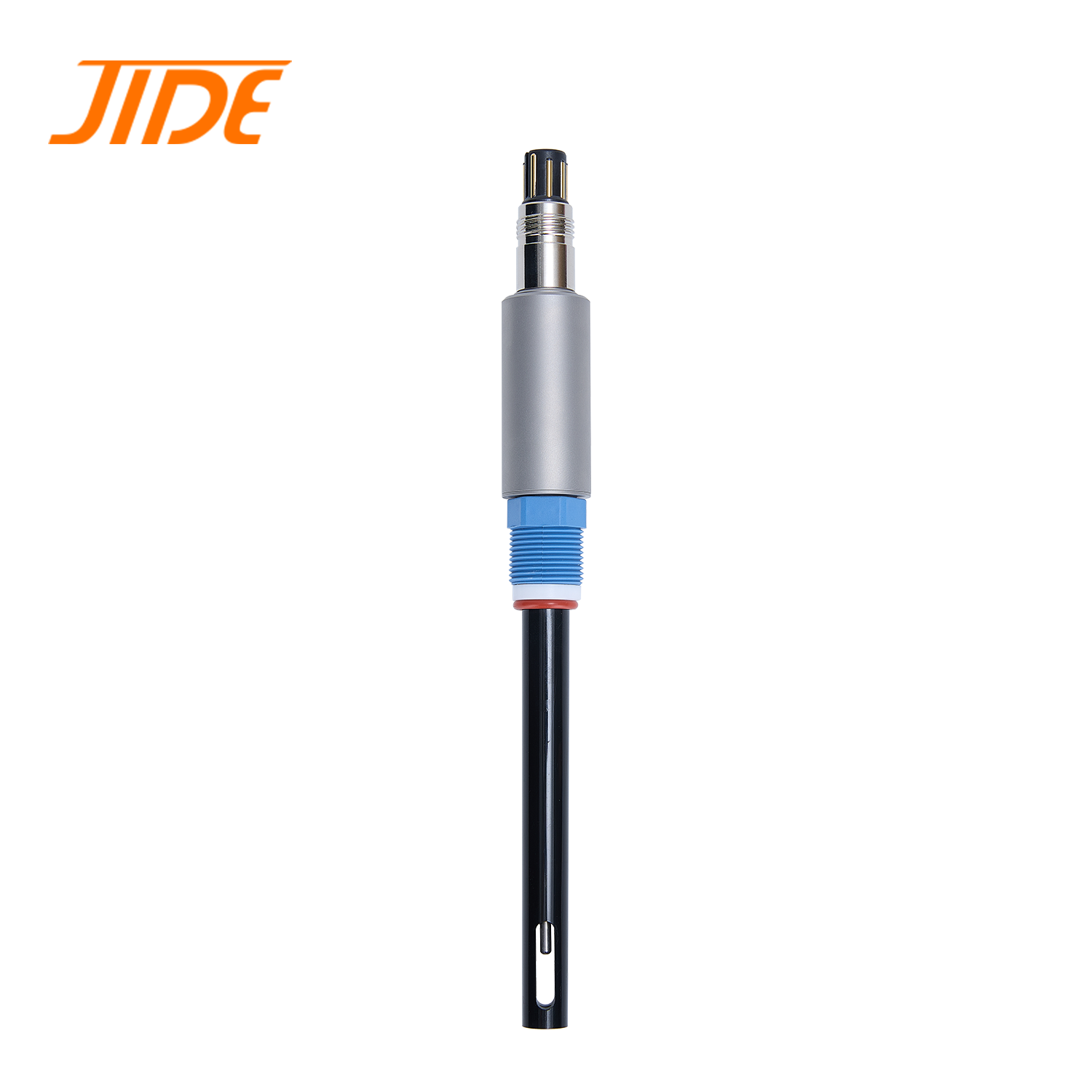

The PSE-514 series online conductivity sensor is a conductivity sensor developed for applications in chemical, pharmaceutical, and food and beverage processes. The electrode adopts a 4-pole measurement principle, with a wide range of conductivity measurement. The main body of the electrode is made of PEEK material, which has high resistance in corrosive solutions. It is especially suitable for processes that frequently perform CIP/SIP cycles, ensuring long-term stable measurement.
Boiler water, steam, surface water, sewage treatment, agricultural breeding, industrial processes.
|
Model |
PSE-514 |
|
Measuring range |
0~300mS/cm |
|
Measurement method |
Four-wire conductivity (bull's eye) |
|
Temperature range |
(0~100) ℃ |
|
Accuracy |
≤±1% |
|
Resolution |
0.01 uS/cm |
|
Maximum withstand voltage |
5 bar |
|
Electrode coefficient |
0.3 |
|
Material |
PEEK, 316L / Titanium alloy / Hastelloy |
|
Temperature sensor |
PT1000 |
|
Interface type |
Cab、VP8、M12 |
|
Power supply |
9~26V |
|
Communication method |
RS485 Modbus |
|
Size |
Φ12*165 |
|
Installation method |
PG13.5 |
