| Place of Origin: | China |
| Brand Name: | JIDE |
| Model Number: | PSE-250 |
| Certification: | CE, RoHS |

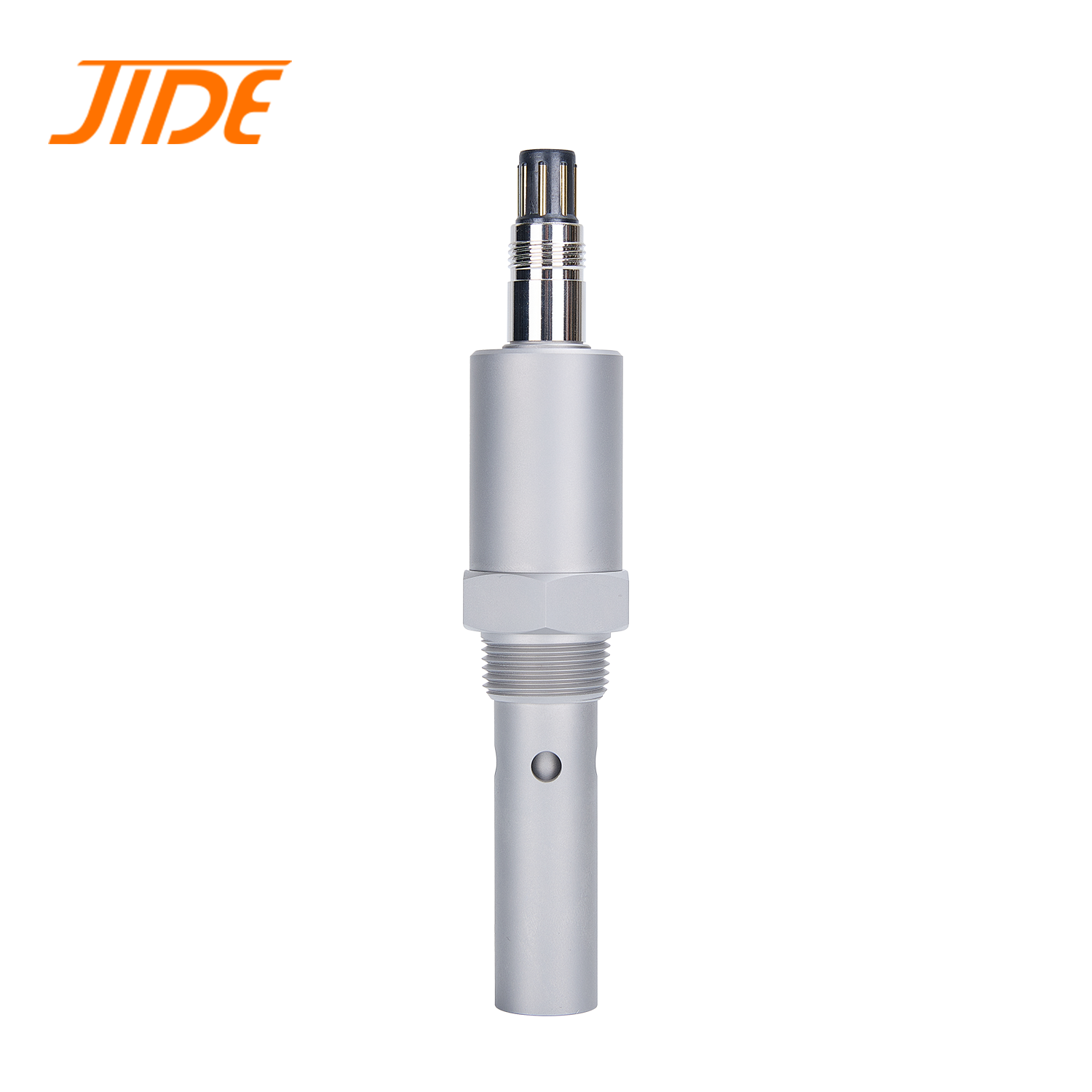

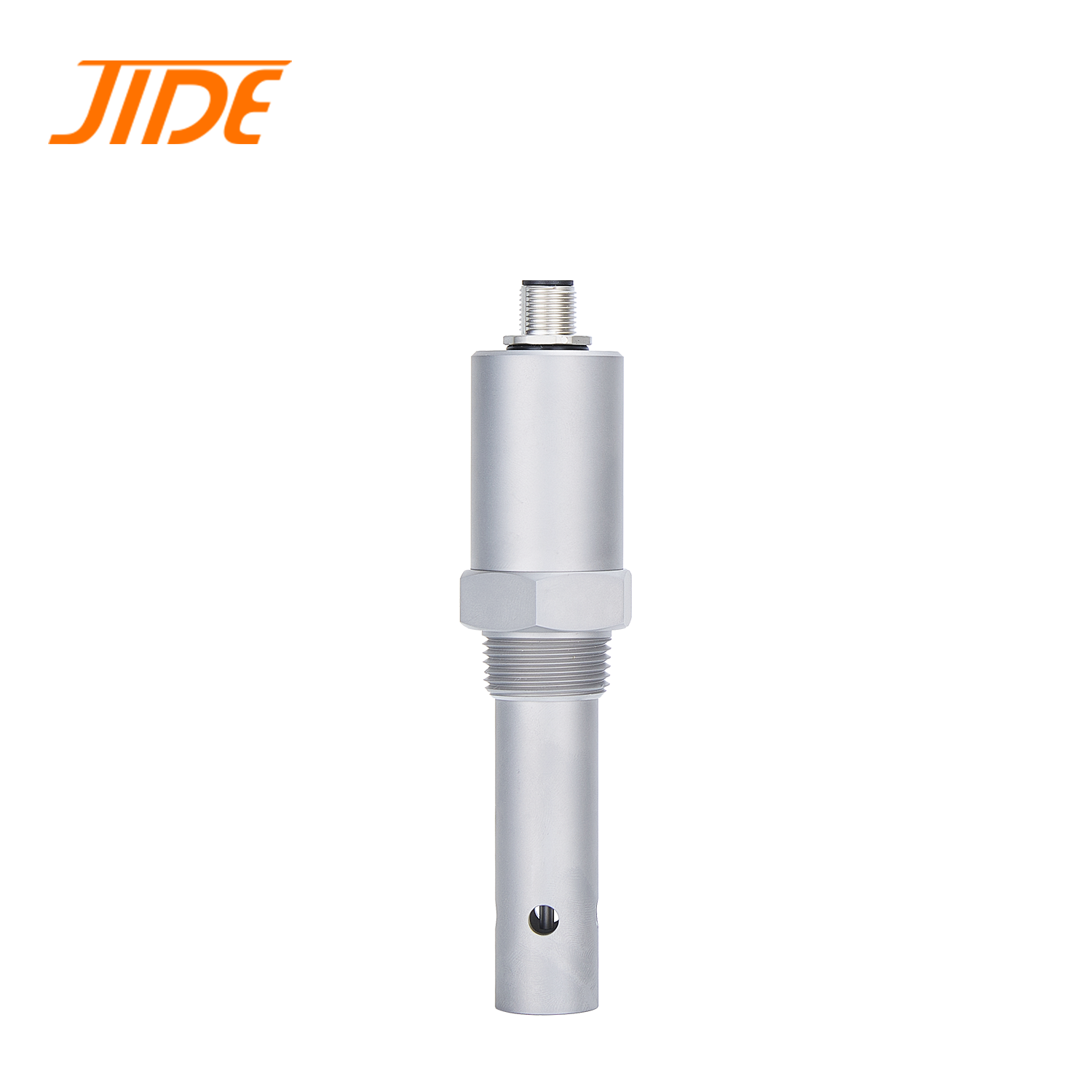

The PSE-250 series online bipolar conductivity sensor is a conductivity sensor developed for high-temperature, low-conductivity solutions, pure water and other applications. The electrodes are made of stainless steel and processed through special techniques, ensuring long-term stable measurement. The built-in temperature sensor enables rapid temperature compensation, and when combined with a digital signal processing module, it can output RS485 signals, facilitating networking and system integratio
Boiler water, steam, surface water, sewage treatment, agricultural breeding, industrial processes.
|
Model |
PSE-250 |
|
Measuring range |
Electrode coefficient 0.01: 0.01~50us/cm; 0.1: 0.1~500us/cm; 1: 0.1~5000us/cm |
|
Measurement method |
Two line conductivity |
|
Temperature range |
(0~130) ℃ |
|
Accuracy |
≤±1% |
|
Resolution |
0.01 uS/cm |
|
Maximum withstand voltage |
10 bar |
|
Electrode coefficient |
0.01、0.1、1 |
|
Material |
Stainless steel 316L |
|
Temperature sensor |
NTC10K、PT1000 |
|
Interface type |
Cab、VP8、M12 |
|
Output |
RS485 |
|
Size |
Φ21*152 |
|
Installation method |
NPT3/4 |
