industrial online conductivity sensor pse 513-0

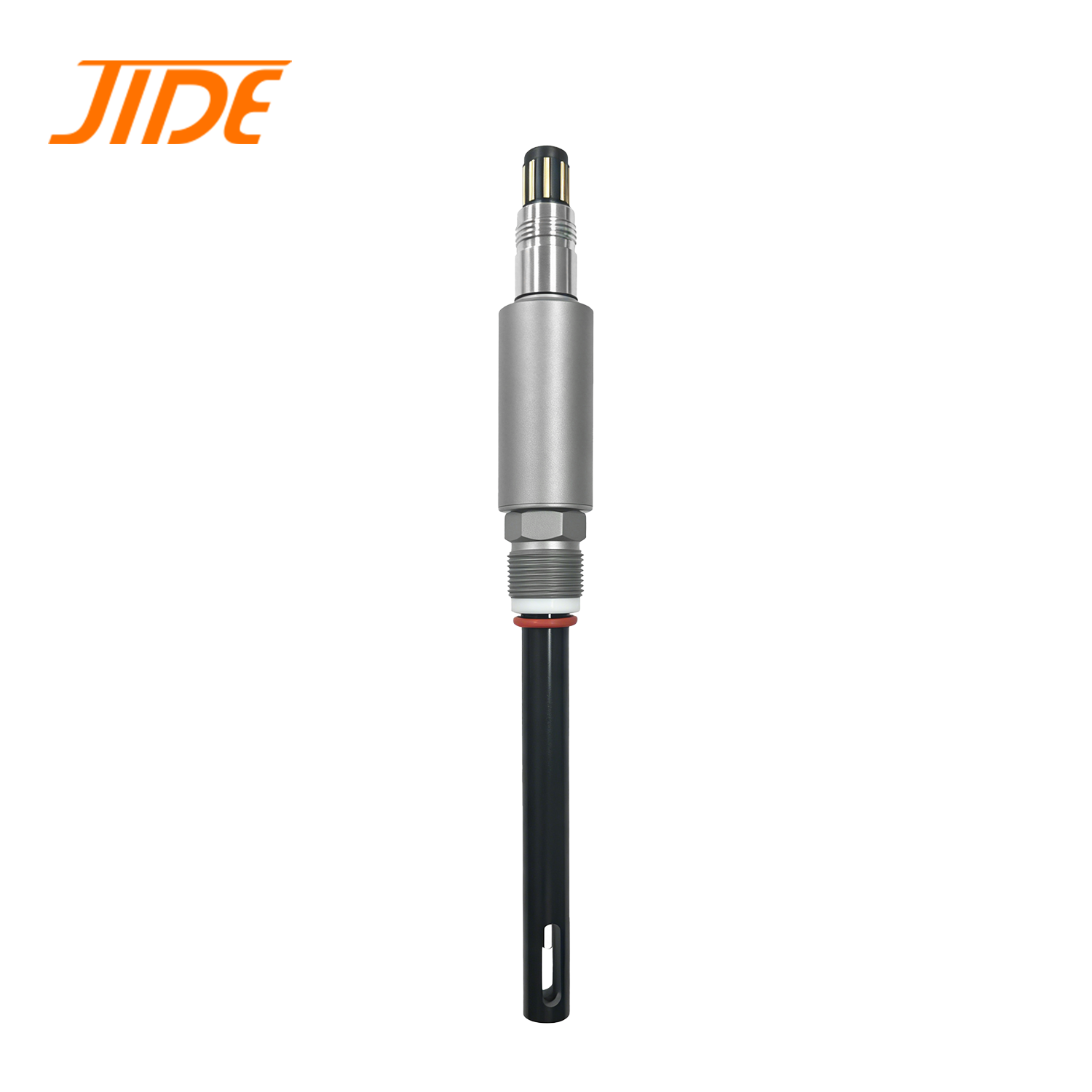

Industrial Online Conductivity/TDS/ Salinity Analyzer

Home >  Products >  Industrial Online Water Quality Monitoring >  Industrial Online Conductivity/TDS/ Salinity Analyzer

Place of Origin: China
Brand Name: JIDE
Model Number: PSE-513
Certification: CE, RoHS

Description

The PSE-513 series of online conductivity sensors is designed for applications such as high-temperature wastewater monitoring, pollution source monitoring, and circulating water monitoring. The electrodes utilize a bull's-eye 4-electrode measurement principle, offering a wide measurement range. The electrode body is made of PC material, providing high resistance to corrosive solutions. It maintains excellent accuracy in high-temperature environments, ensuring long-term stable measurements.

Applications

Boiler water, steam, surface water, sewage treatment, agricultural breeding, industrial processes.

Specifications

Model

PSE-513

Measurement Range

0–500 mS/cm

Measurement Method

Four-wire conductivity (bullseye)

Temperature Range

(0–80) °C

Accuracy

≤±1%

Resolution

0.01 μS/cm

Maximum Operating Pressure

5 bar

Electrode Coefficient

0.4

Material

Electrode shaft: PC; Electrode: Graphite

Temperature Sensor

NTC

Interface Type

M12, VP, Cab

Power Supply

9–26 V

Communication Method

RS485 Modbus

Dimensions

Electrode section: Φ12 × 120

Mounting Method

PG13.5
